Hauvrex HXL6440X - 4.0 Ton Low Profile Scissor Lift
Keypoints:

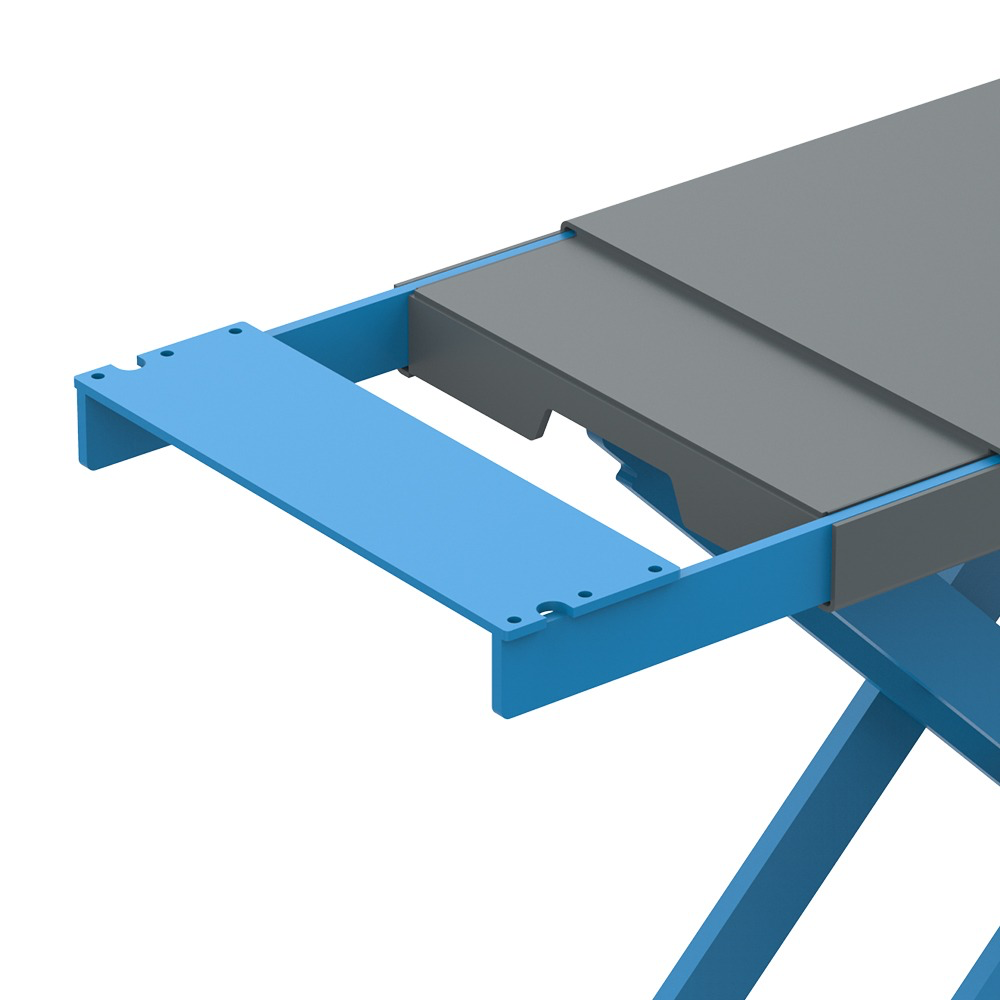

- With dual side draw-out extension

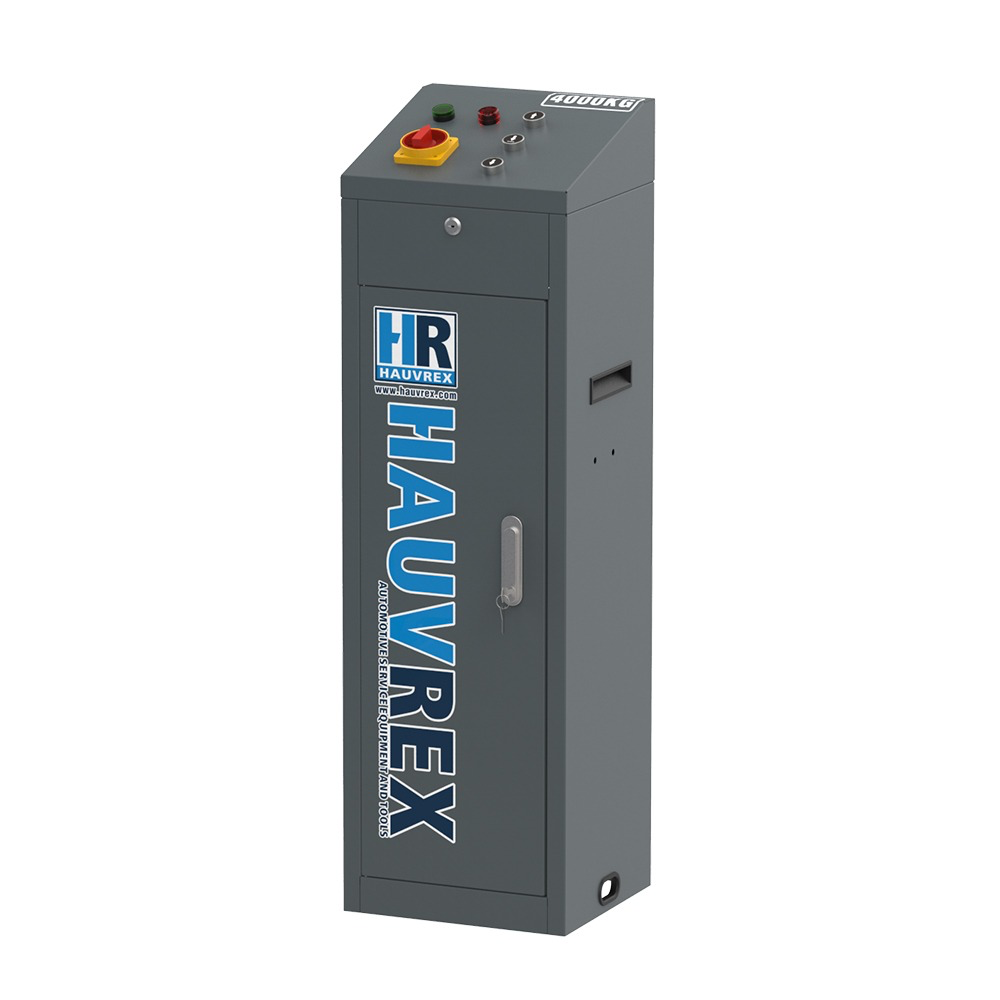

- Control cabinet with UP, Down button, main power switch, emergency stop button, power indication light and buzzer
- Drive-on ramps which can be locked on level as platform extension
- Patented mechanical synchronization device which stops lowering while any of two platforms are blocked

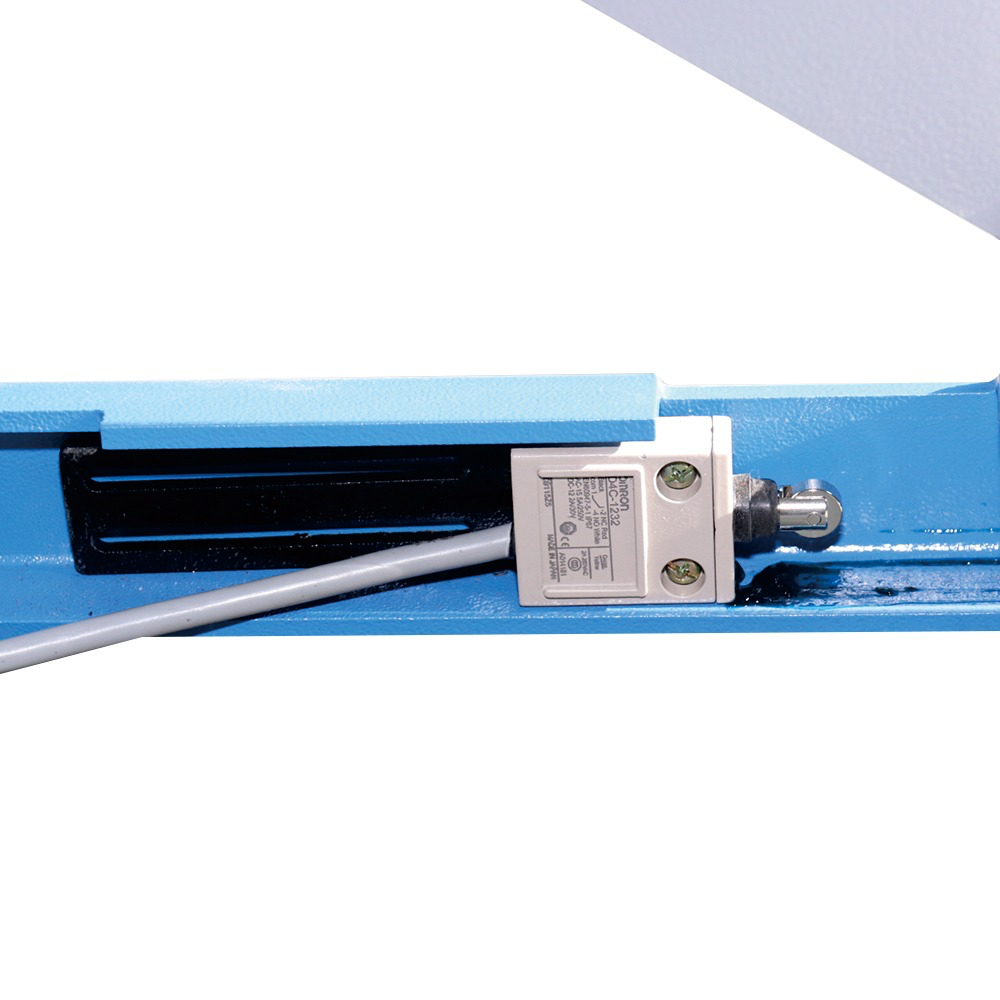

- Sensor type up limit switch and lowering limit switch with buzzer warning
- One-key leveling button inside control box makes leveling of platforms simple
- Grease point on all shafts to reduce wear out of components
- A set of four rubber pads as standard accessory
Tämä sisältö jaetaan kaikilla tuotesivuilla.
Määrittelyt
| Technical specifications | |
|---|---|
| Capacity | 4000 kg |
| Lifting time | > 20 sec |
| Type lift | Low Profile Scissor Lift |
| Installation | On Ground Installation |
| Security system | Parachute valve |
| Hydraulic system | Master - Slave |
| Synchronisation | One button Patended System |
| Generic | |
|---|---|
| EAN | 9505977181796 |
| Manufacturer | Hauvrex |
| Hydraulic Group | Bucher Hydraulics |
| Logistic information | |
|---|---|
| Shipping weight | 896 kg |
| Dimensions | |
|---|---|
| Minimum height | 11,7 cm |
| Max lifting height (cm) | 194,2 cm |
| Platform length | 188,5 cm - 228,5 cm |
| Platform width | 66 cm |
| Distance between platforms | 82 cm |
| Total Width | 214 cm |
| Control cabinet height | 107 cm |
| Motor | |
|---|---|
| Voltage | 380V |
| Motor | 2,2KW |
