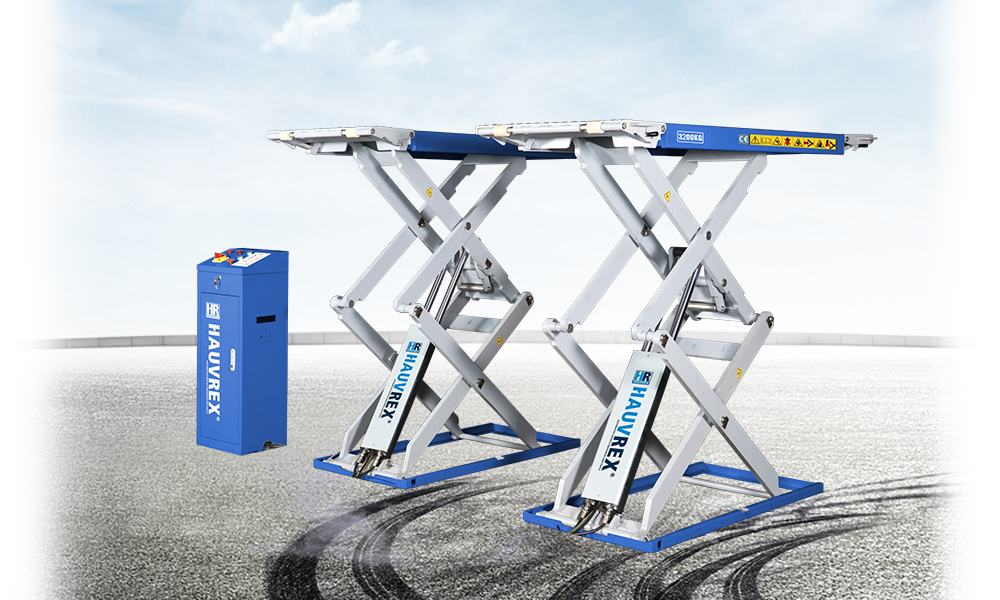

Hauvrex HXL6435YM - 3500 kg Double scissor lift - CE
The Hauvrex HXL6435YM is a 380V double scissor lift with a capacity of 3500kg and can be used in a professional garage business.
- hydraulic group from Bucher Hydraulics
- the control panel is equipped with an emergency stop switch and acoustic signal
- reinforced ramps that can be used to extend the platforms
- the patented mechanical synchronisation system will automatically stop the lift in the event of a difference in height when lowering the lift (e.g. when one platform is blocked)
- height stop switch and lowering stop switch with acoustic signal
- easy synchronisation of the platforms with one button
- lubrication points on all axles
- geen mechanische veiligheid (master slave principe)
- but anti-return/safety valves in the cylinders (parachute valve)
- smeernippels en lagers : geen vroegtijdige slijtage van de assen en draaiende delen
It is important to mention that this double scissor lift has a patented mechanical synchronisation system, which means that no electronic components were used, nor laser sensors etc. which keeps this lift extremely reliable with stable operation.
Key features:
- Motor 2,2 KW - 380V
- Lifting capacity : 3500kg
- Minimum / maximum height : 105 / 1,930 mm
- Width of platforms : 660 cm
- Length of platforms : 1,485 mm, maximum 2,105 mm
- Width between platforms : 800mm
- Overall width of lift : 2220mm
Technical specifications:
This content will be shared across all product pages.
Specifications
| Technical specifications | |
|---|---|
| Hydraulic system | Master - Slave |
| Security system | Parachute valve |
| Capacity | 3500 kg |
| Type lift | Low Profile Scissor Lift |
| Lifting time | 55 sec (adjustable) |
| Synchronisation | One button Patended System |
| Generic | |
|---|---|
| Manufacturer | Hauvrex, Hauvrex |
| Hydraulic Group | Bucher Hydraulics |
| EAN | 9508257663463 |
| Logistic information | |
|---|---|
| Packing dimensions | 220 x 75 x 40 cm - 828kg + 115 x 40 45 cm - 55 kg |
| Shipping weight | 900kg + 20kg (oil) |
| Dimensions | |
|---|---|
| Net weight | 875 kg |
| Minimum height | 10,5 cm |
| Max lifting height (cm) | 193 cm |
| Total Width | 222 cm |
| Platform length | 148,5 cm - 210,5 cm |
| Platform width | 66 cm |
| Lenght drive-on ramp | 31 cm |
| Motor | |
|---|---|
| Voltage | 380V |
| Motor | 2,2KW |
