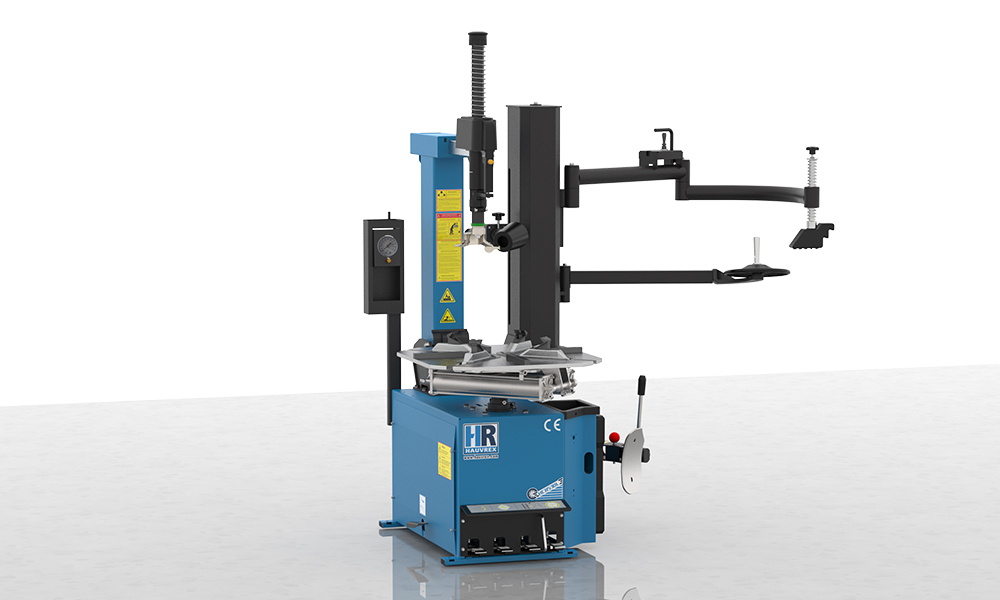

Hauvrex HC8530L Automatic Tilt Column Car Tire Changer 28" with DP30 helper arm
> Automatic tyre changer machine with pneumatic tilt-back tower.
> Robust Ø41mm hexagon shaft.
> Simultaneous pneumatic locking of the horizontal and vertical arms with automatic positioning of the head in the optimal work position.
> Tool head with interchangeable plastic parts for rim protection.
> Pneumatic tilting arm support column featuring high torsional rigidity in all operation positions.
> Clockwise and anticlockwise rotation of the turntable through electric motor.
> The pedal assembly can be removed allowing easy servicing.
> Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard.
> Independent tire inflation bay with inflation tube, pressure gauge and pressure release button.
> Complete with lubrication filter and pressure regulator.
> Motor : 1,5KW - 220V/50HZ/1Ph
DP30 helper arm:
> Rotating arm with bead pressing block for drop-center rims, to assist fitting and removal of tyres, particularly low profile tyres.
> Tyre lifting disk to aid in demounting difficult tyre and wheel combinations.
> Mid-position roller helps loosening of the second bead.
Specifications
| Rim Clamping Outside | 12" - 28" |
| Rim Clamping Inside | 10" - 24" |
| Maximum wheel diameter | 1150 mm |
| Maximum Wheel Width | 3" - 15" |
| Beadbreaking Force | 2700 kg |
| Operation Air Pressure | 8 - 10 bar |
