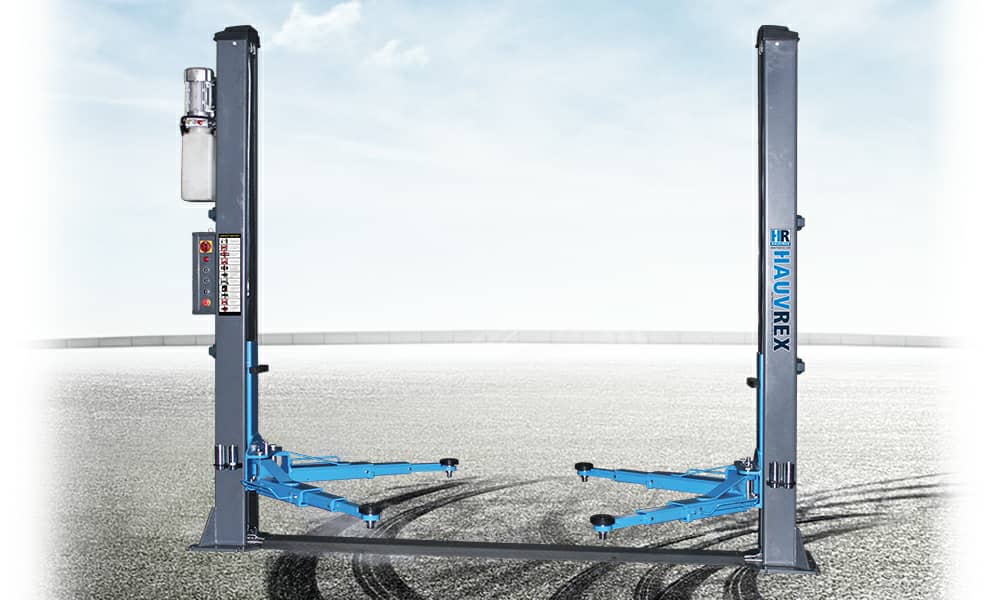

Hauvrex HTL2640.PRO Two post lift 4 ton
The Hauvrex HTL2640.PRO two post lift with a capacity of 4 tonnes and maximum lifting height of 1935mm is a very high quality and reliable two post lift which can be used for daily professional use. The lift is asymmetrical with 4 arms in three sections and a minimum lifting height of 85 mm.
The reliability of this lift is partly due to its proven design and overall build quality, a Bucher Hydraulics hydraulic group with an aluminium motor to avoid overheating and the absence of electronics or circuit boards in the control box.
Operation is fully automatic : locking and unlocking when lowering is done electrically and automatically via the lowering button, so no manual unlocking.
In terms of safety, the overall quality and robustness of the lift is a primary safety. There is also protection of the chain so that it cannot roll off the pulley. Synchronisation is by means of steel cables.
- Lift capacity : 4000 kg
- Min. height: 85mm
- Max. lifting height : 1935mm
- Overall height : 2826mm
- Overall width : 3418mm
- Width between poles : 2830mm
- Length short arm : 610~1346mm
- Length long arm : 706-1346mm
- Lifting/lowering Time: 55 Sec./45 Sec (adjustable)
- Motor Power: 2.2kW
- Power supply: 220V/50Hz/1Ph
- Hydraulic group from Bucher Hydraulics
The lift is further equipped with rubbers to protect opened doors, a 24V control box without circuit board/electronics, shafts with bearing, automatic unlocking of the arms in the lowest position.
Specifications:
Height adaptors in option.
Translated with DeepL.com (free version)
Specifications
| Hefbruggen | |
|---|---|
| Capacity | 4000 kg |
| Others | |
|---|---|
| Type | Tweepalenhefbrug |
| Manufacturer | Hauvrex |
| Tags | |
|---|---|
| Tags | |
