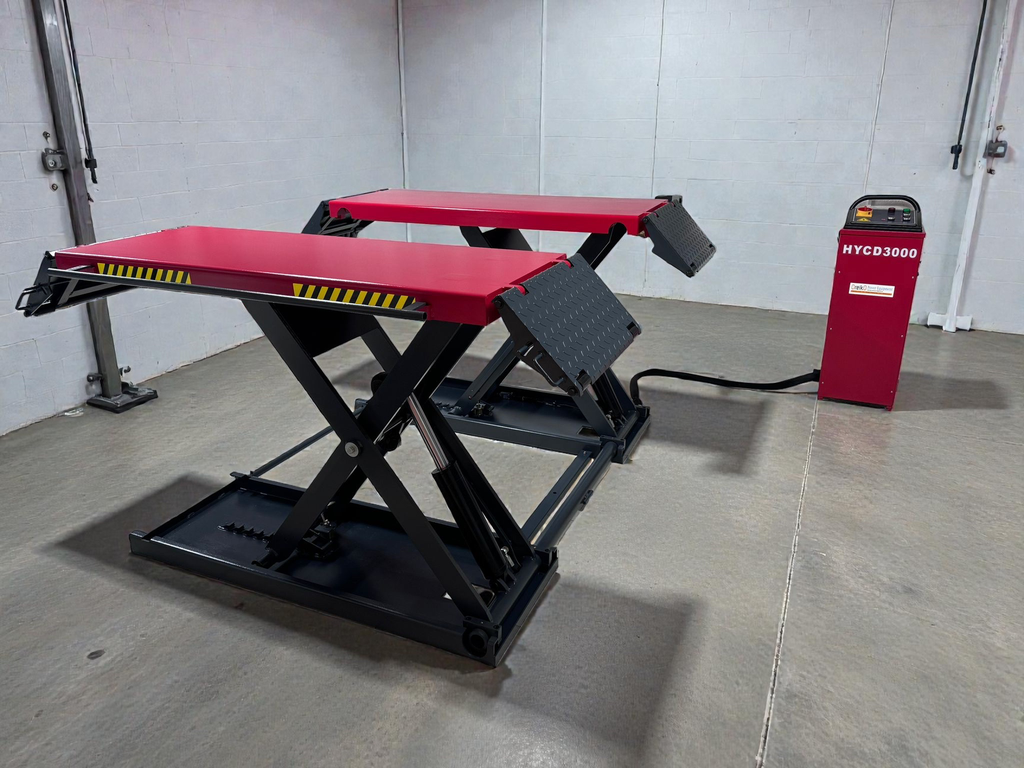

The OreikO HYCD3000 is the classic 3000kg mobile scissor lift/tyre lift/cleaning lift, which can be used on a daily basis by professional users (detailing, maintenance, tyres, bodywork, car wrapping, etc.) thanks to its quality, but also by private users for their hobby cars or oldtimers thanks to its attractive price.
Because the hoses are extra long (3m) and a mobile set is included as standard, this mobile scissor lift can be used very flexibly in the workshop. Of course, this lift does not need to be fixed to the floor, but is always possible via the holes provided on the floor plate.
The ramps can be blocked horizontally to make the platforms longer.
Thanks to the additional auxiliary frame ('helper') in the scissors, the lift has more power during the first 10cm. The advantages of the 'helper' function, being the extra subframe in the scissors (see photos):
- the first 10cm the bridge has much more power, which means the bridge will go up much more smoothly and gently
- heavy and low vehicles, such as Tesla electric cars, can be lifted much more easily with this bridge
- when lowering, the bridge will also not 'crash' at the end thanks to this additional subframe.
The HYCD3000's auxiliary frame is not just a theoretical concept, but the size and position has been tested in such a way that the auxiliary frame also does in practice what it is supposed to do : help.
The rise and fall speed can be adjusted with valves if the bridge always lifts heavy or light vehicles. A pressure gauge helps with this.

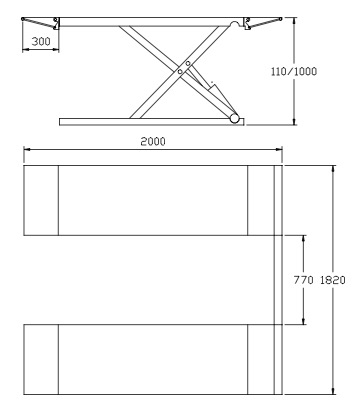

The total width of the lift without the foot protection is 182 cm, making it easier to drive a large (wide) car over it. The standard width of most lifts (side platforms) is only 176cm.
Provided the necessary thinking is done, the bridge can also be built into the floor, see photos.
Each HYCD3000 conforms to the current CE requirements (The CE test report can be viewed on special request):
- dynamically tested (including safety operation) at 115% of maximum capacity
- statically tested at 150% of maximum capacity (stability and deformation)
Supplied/equipped as standard with:
- lowering valve with emergency function
- adjustable lifting speed
- 2 sets of rubber support blocks of 3 and 6 cm
- mobile set
- power cable + plug
- hydraulic oil
- foot protection on the side of the platforms
- hydraulic pressure gauge
Specifications:
- Power supply : 220V, 1Ph - 13A
- Motor : 2.2KW
- Hydraulic pressure pump : max 200 bar (adjustable)
- Capacity : 3000 kg
- Minimum height : 11 cm
- Maximum height : 100 cm
- Ascent / descent time : 45s/30s (adjustable)
- Platform width/length : 52,5 cm/140cm
- Space between platforms : 77 cm
Delivered in a wooden box on a pallet to avoid transport damage. 192x154x22cm - 510kg / 93xx43x33cm - 59kg + oil
Terms and Condition: Price incl 21% VAT (BE) - Delivery / installation option
For quotation or other models, please contact us
Lifts packed in wooden crates (no transport damage) and delivered with tailgate and pallet truck (except 2 pole lifts)
Shipment of stock products: <24h after payment
Manufacturer's warranty: 1 year
Specifications
Hefbruggen
Color
Red + black structure or
Blue + anthracite structure
Capacity
3000 kg
Max lifting height (cm)
100
Motor
2.2 KW - 220V mono - 13A
Type lift
Mobile kit included
Security system
Mechanical lock (electric)
Foot protection
Sound (buzzer)
Others
Brand
OreikO
