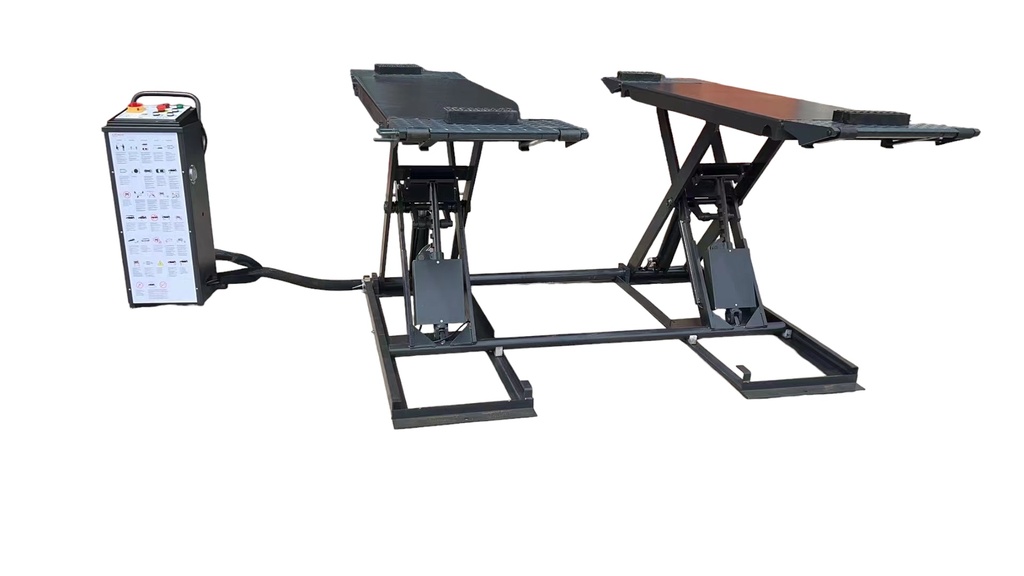

The OreikO HYCD410 is a further development of the famous OreikO HYCD3000. For a description, please refer to the HYCD3000's page.
Here we describe the differences:
- because the lift is reinforced at several points, the maximum lifting capacity is 4100kg!
- 2 solid fixed connections between both scissors
- the safety is an additional construction in the scissor with a cylinder with a toothed bar. A unique design and extremely strong.
In other words, this lift is extra suitable for large tyre centres.
Specifications:
- Power supply : 220V, 1Ph - 13A
- Motor : 2.2KW
- Hydraulic pressure pump : max. 200 bar (adjustable)
- Capacity : 4100 kg
- Minimum height : 10,5 cm
- Maximum height : 100 cm
- Ascent / descent time : 45s/30s (adjustable)
- Platform width/length : 52 cm/140cm
- Maximum platform length : 200 cm
- Total width lift (excluding footboard) : 180cm
- Space between platforms : 76cm
Supplied in a wooden crate on a pallet to avoid transport damage. 192x154x22cm - 530kg / 93xx43x33cm - 59kg + oil
Terms and Condition:
Price incl 21% VAT (BE) - Delivery / installation option
For quotation or other models, please contact us
Lifts packed in wooden crates (no transport damage) and delivered with tailgate and pallet truck (except 2 pole lifts)
Shipment of stock products: <24h after payment
Manufacturer's warranty: 1 year
