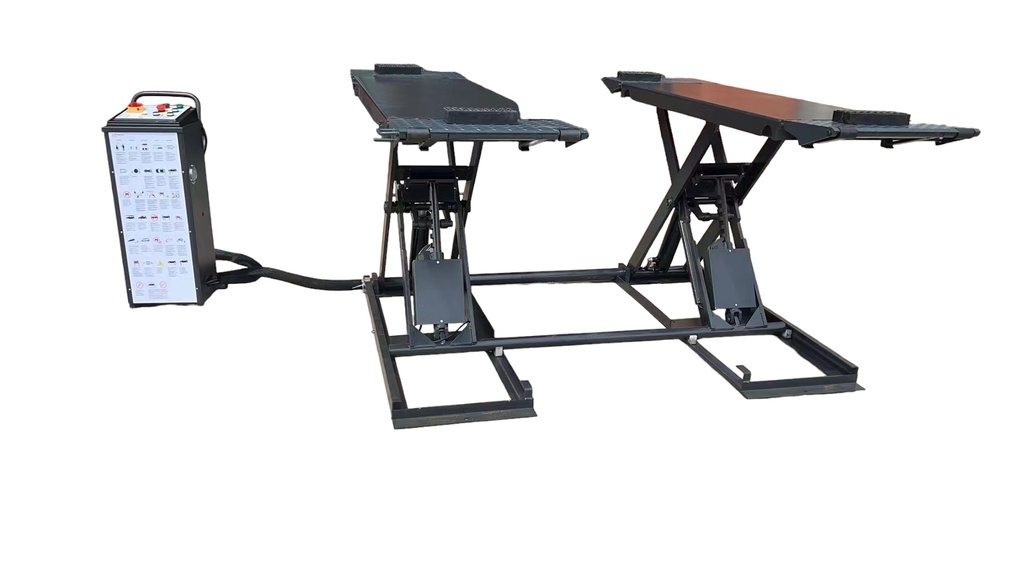

OreikO HYCD410 - 4100kg Mobile scissor lift / tyre bridge 220V - CE
The OreikO HYCD410 is a further development of the famous OreikO HYCD3000. For a description, please refer to the HYCD3000's page.
- Power supply : 220V, 1Ph - 13A
- Motor : 2.2KW
- Hydraulic pressure pump : max. 200 bar (adjustable)
- Capacity : 4100 kg
- Minimum height : 10,5 cm
- Maximum height : 100 cm
- Ascent / descent time : 45s/30s (adjustable)

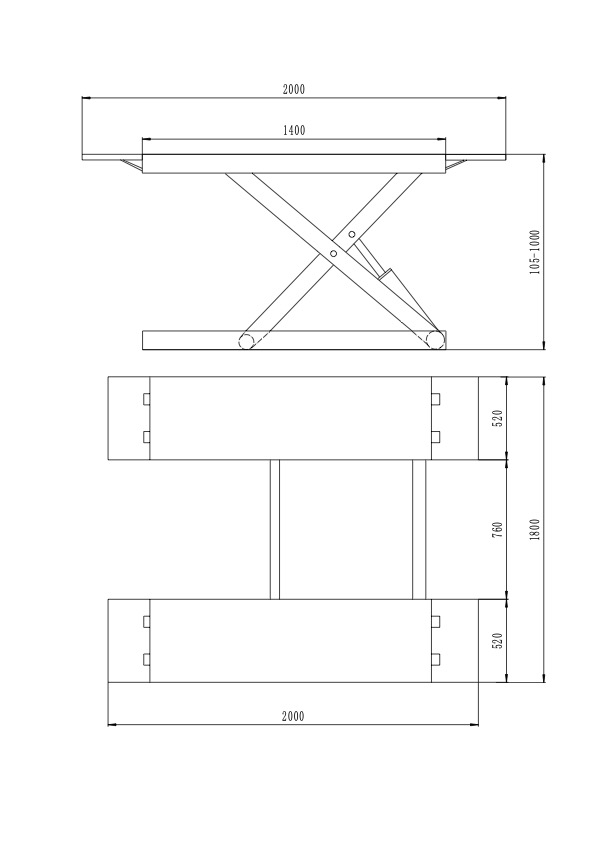

- Platform width/length : 52 cm/140cm
- Maximum platform length : 200 cm
- Total width lift (excluding footboard) : 180cm
- Space between platforms : 76cm
Specifications:
Supplied in a wooden crate on a pallet to avoid transport damage. 192x154x22cm - 530kg / 93xx43x33cm - 59kg + oil
This content will be shared across all product pages.
Specifications
| Technical specifications | |
|---|---|
| Capacity | 4100 kg, 4100 kg |
| Security system | Mechanical lock (electric) |
| Foot protection | Sound (buzzer) |
| Type lift | Mobile kit included |
| Lowering valve | Emergency valve |
| Generic | |
|---|---|
| Color | Red + black structure, Blue + anthracite structure, Grey |
| Dimensions | |
|---|---|
| Max lifting height (cm) | 100 |
| Others | |
|---|---|
| Brand | OreikO |
| Tags | |
|---|---|
| Tags |
