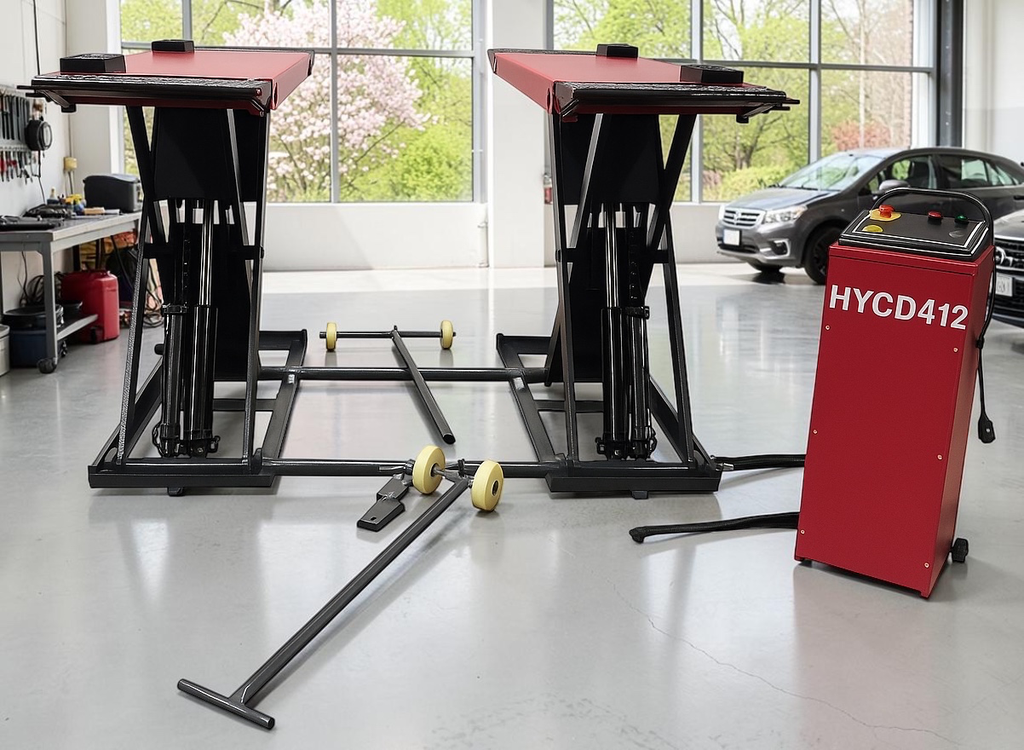

OreikO HYCD412 Mobile scissor lift 4000kg / 120cm - 220V - CE

The OreikO HY3512 occupies a unique position on the market of mobile scissor lifts due to its internal qualities peculiar to OreikO scissor lifts and its specifications: a maximum lifting height of 120cm, a lifting capacity of 3500kg (new version 4000kg) and long platforms that make it easier to place larger vehicles on the bridge. Even the heaviest and lowest electric cars pose no problem, possibly in combination on the optional 100cm ramps.

Thanks to its features, this OreikO HY3512 is the perfect transportable lift for the detailer, but also for the tyre dealer and the bodyshop/body shop.
Given the extra 20cm lifting height, the HY3512 is also better suited for maintenance work if a double scraper lift is too high due to limited ceiling height.

Because the hoses are extra long (3m) and a mobile kit is included as standard, this mobile scissor lift can be used very flexibly in the workshop. Of course, this lift does not need to be fixed to the floor, but is always possible via the holes provided on the floor plate.
The ramps can be blocked horizontally to make the platforms longer.

Thanks to the additional auxiliary frame (‘helper’) in the scissors, the lift has more power during the first 10cm. The advantages of the ‘helper’ function, being the extra subframe in the scissors (see photos):
- the first 10cm the bridge has much more force, which means the bridge will go up much more smoothly and gently
- heavy and low vehicles, such as Tesla electric cars, can be lifted much more easily with this bridge
- when lowering, the bridge will also not ‘crash’ at the end thanks to this additional subframe.
The HY3512's auxiliary frame is not just a theoretical concept, but the size and position has been tested in such a way that the auxiliary frame also does in practice what it is supposed to do : help.
The rise and fall speed can be adjusted with valves if the bridge always lifts heavy or light vehicles. A pressure gauge helps with this.

The total width of the lift without the foot guard is 183 cm, making it easier to drive a large (wide) car over it. The standard width of most lifts (side platforms) is only 176cm.
Provided the necessary thinking is done, the bridge can also be built into the floor.

Each HY3512 conforms to the current CE requirements (The CE test report can be viewed on special request):
- dynamically tested (including safety operation) at 115% of maximum capacity
- statically tested at 150% of maximum capacity (stability and deformation)

Supplied/equipped as standard with:
- lowering valve with emergency function
- adjustable lifting speed
- 2 sets of rubber support blocks of 3 and 6 cm
- mobile set
- power cable + plug
- hydraulic oil
- sound signal when lowering for the last 25 cm
- foot protection on the side of the platforms
- hydraulic pressure gauge

Specifications:
- Power supply : 220V, 1Ph - 13A
- Motor : 2.2KW
- Hydraulic pressure pump : max. 200 bar (adjustable)
- Capacity : 3500 / 4000kg
- Minimum height : 11 cm
- Maximum height : 120 cm
- Ascent / descent time : 45s/30s (adjustable)
- Platform width / length : 53cm/157cm
- Space between the platforms : 77 cm

Supplied in a wooden box on a pallet to avoid transport damage. 192x173x22cm - 575g / 93xx43x33cm - 59kg + oil
