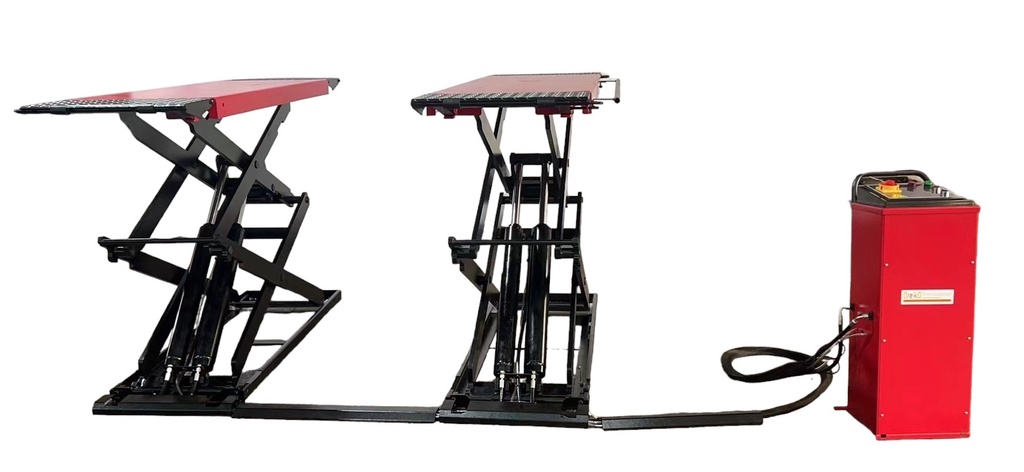

The OreikO HYCLCB3000 double short scissor lift for surface mounting is a strong 3 tonne low scissor lift for mounting on the shop floor without any real structural work (fixing bolts included in the package) .
This lift operates without compressed air. The simple 24 Volt control panel ensures safe operation.
The strong ramps with non-slip profile can be folded up and secured for extra pick-up length.
Due to the unique construction with double cylinders and the subframe (helper), it is technically possible to create a lot of lifting power with a minimum height of 11 cm already in the first few centimetres and achieve a maximum lifting height of 187 cm.
The lifting tables are hydraulically synchronised so that the two tables with double cylinders always raise and lower at exactly the same time. No laser/sensor is used for synchronisation. The synchronisation should be done once during installation using one button. This design is a very stable and reliable system.
There is no mechanical lowering protection, but there are reliable parachute valves in the cylinders which means that in the event of a hose burst, the bridge will lower synchronously in a safe manner.
It is a deliberate choice by the manufacturer not to use mechanical locking to promote safety and reliability. With mechanical locking, if one platform remains blocked and the other lowers, there is a high safety risk because there is no mechanical synchronisation as with a two-post lift bridge (cables).
The dimensions of the platforms (60cm wide and 153cm long, maximum 204cm long with both ramps folded) are an ideal compromise between safety and ease of use : platforms that are too short are disastrous for large vehicles, with platforms that are too long, small vehicles cannot get on the bridge.
Other features:
- sound signal when lowering (foot protection)
- automatic height stop to protect the cylinders
- metal protection of the hoses
- static test 150% (4500kg) and dynamic test 115% in accordance with CE standards
- platform can be extended with the ramps up to 2040mm
- 24V operation (mandatory according to CE standards)
- includes large intake rubbers (3cm and 6cm)
Technical specifications:
- power supply : 220V monophase 50Hz
- motor : 2,2KW - 3HP
- lifting capacity (CE) : 3000kg
- maximum height : 1870mm + rubber blocks
- minimum height : 104mm
- standard lifting lowering time : 45 sec (adjustable as desired)
- length / width platform : 1530mm - 2040mm / 600mm
- width between platforms : approximately 83 cm
Delivery
The bridge and control unit are packed in 2 sturdy wooden boxes to avoid transport damage. Total delivery weight 725kg.
Delivery (home) and installation are possible at extra cost.
Package dimensions : 165x65x32 cm and 93x43x33 cm + hydraulic oil (included) - 739kg
Terms and Condition: Price incl 21% VAT (BE) - Delivery / installation option
For quotation or other models, please contact us
Lifts packed in wooden crates (no transport damage) and delivered with tailgate and pallet truck (except 2 pole lifts)
Shipment of stock products: <24h after payment
Manufacturer's warranty: 1 year
Specifications
Hefbruggen
Color
Red + black structure or
Blue + anthracite structure
Motor
2.2 KW - 220V mono - 13A or
3KW - 400V
Capacity
3000 kg
Max lifting height (cm)
185
Type lift
On-Ground surface mount
Security system
Parachute valve
Model category
Scissor lift
Foot protection
Sound (buzzer)
Synchronisation
Hydraulic (no laser/sensor)
Lowering valve
Emergency valve
Others
Brand
OreikO
