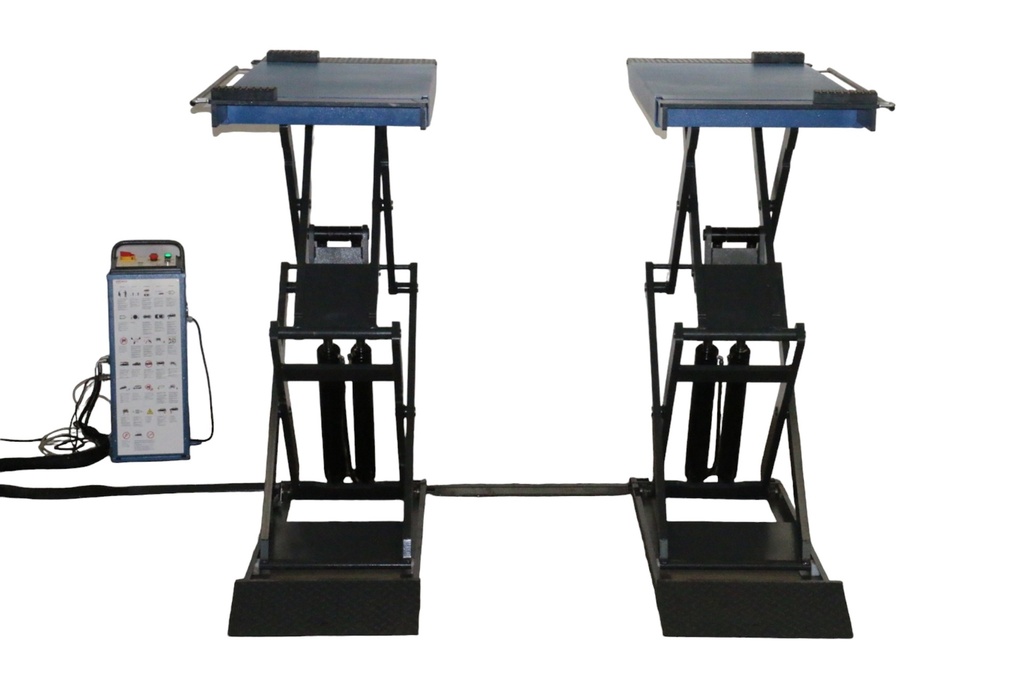

OreikO HYCLCB4000 double scissor lift 4000kg - 220V
div data-oe-version="1.1">Looking for a strong 4,000kg scissor lift? Our OreikO HYCLCB4000 weighs 1,050kg excluding the control tower! So ideal for 3,500kg vans that are loaded.
The OreikO HYCLCB4000 double short scissor lift for surface mounting is an impressive 4 tonne low scissor lift for mounting on the shop floor without any real structural work (fixing bolts included in the package) .
- power supply : 220V monophase 50Hz
- motor : 2,2KW - 3HP
- lifting capacity (CE) : 4000kg
- maximum height : 1850mm + rubber blocks
- minimum height : 115mm
- standard lifting lowering time : 45 sec (adjustable according to wish)
- length / width platform : 1530mm - 2250mm / 710mm
- width between platforms : approximately 885mm
The lifting tables are hydraulically synchronised so that the two tables with double cylinders always raise and lower at exactly the same time. No laser/sensor is used for synchronisation. The synchronisation should be done once during installation using one button. This design is a very stable and reliable system.
Technical specifications:
Delivery
The bridge and control unit are packed in 2 sturdy wooden crates to avoid transport damage. Total delivery weight 1140kg.
Packaging dimensions : 165x75x38 cm and 93x43x33 cm + hydraulic oil (included) - 1,050kg
This content will be shared across all product pages.
Specifications
| Generic | |
|---|---|
| Color | Red + black structure, Blue + anthracite structure |
| Logistic information | |
|---|---|
| Packing dimensions | 165 x 75 x 45 cm - 1045 kg / 93 x 43 x 33kg - 59kg |
